Errett Road Drainage Work - 2025?
|
Click for original culvert elevations
|
"Downstream" Conditions
Water from this road drains into the ditch on the east side of Kent Ave.
From there, the water travels north along Kent Ave to a culvert under the road between Bayberry and Short Rds, and eventually to the Assawoman Canal.
DNREC has been working on a plan to improve the drainage along Kent Ave.
Existing Driveway Culverts
Several collapsing culverts have been replaced by MBA; one has been temporarily "stented".
Additionally, some property owners have paid for culvert replacement/expansions.
Existing Conditions
The ditches along Errett are shallower than most of the rest of the community, and need to be lowered (or actually created in the first place) and made wider.
Upcoming Work
Not all driveways will be impacted; each is being evaluated individually. MBA met with Lyndon Hitchens on March 18 and discussed the work we'd like done. See the below chart for (not final) details.
Existing Photos
The below pictures, starting at the western end, were taken in March 2025.
The webmaster is too lazy at the moment to properly code it, so please right-click on any photo to see a larger version...
Additional basic notes have been entered for each driveway, and more certainly will be added.
Such as, oh, say, elevations...
|
| Left (west) side of driveway |
Driveway |
Right (east) side of driveway |
Address/Owner/Misc Notes |
 |
 |
 |
1-Gruenspecht
OK-swale put into buried pipe January 2012 |
 |
 |
 |
3-Tyson
OK-swale put into buried pipe January 2012 |
 |
 |
 |
5-Laigle
OK; culvert replaced 2014 or so |
 |
 |
 |
7-Robinson
culvert replaced 2014 or so; gravel needed on driveway portion on MBA property
rip-rap needs adjustment; culvert opening is partially obstructed |
 |
 |
 |
9-Quinlan
overhanging branches to be removed
driveway OK |
 |
 |
 |
11W-Glasgow
driveway culvert OK; some swale work |
 |
 |
 |
11E-Glasgow
driveway culvert OK; swale reengineering from here eastward |
 |
 |
 |
13W-Barila
replace concrete culvert sections w/ new 10" pipe
landscaping timbers? |
 |
 |
 |
13E-Barila
replace steel pipe w/ new 10" pipe
landscaping timbers? |
 |
 |
 |
15-Bolasky
replace concrete culvert sections w/ new 10"
new swale to be dug |
 |
 |
 |
17-Weninger
replace steel pipe w/ new 10" pipe
swale to be widened/deepened
|
 |
 |
 |
19W-Chodnicki
replace concrete sections w/ new 8" pipe |
 |
 |
 |
19E-Chodnicki
replace concrete sections w/ new 8" pipe |
 |
 |
 |
21W-Paul
culvert replaced Jan 2021; probably needs to be lower; new 8" pipe |
 |
 |
 |
21E-Paul
culvert replaced Jan 2021; probably needs to be lower; new 8" pipe |
 |
 |
 |
23-Whitmore
replace concrete sections w/ new 8" pipe; dig swale |
 |
 |
 |

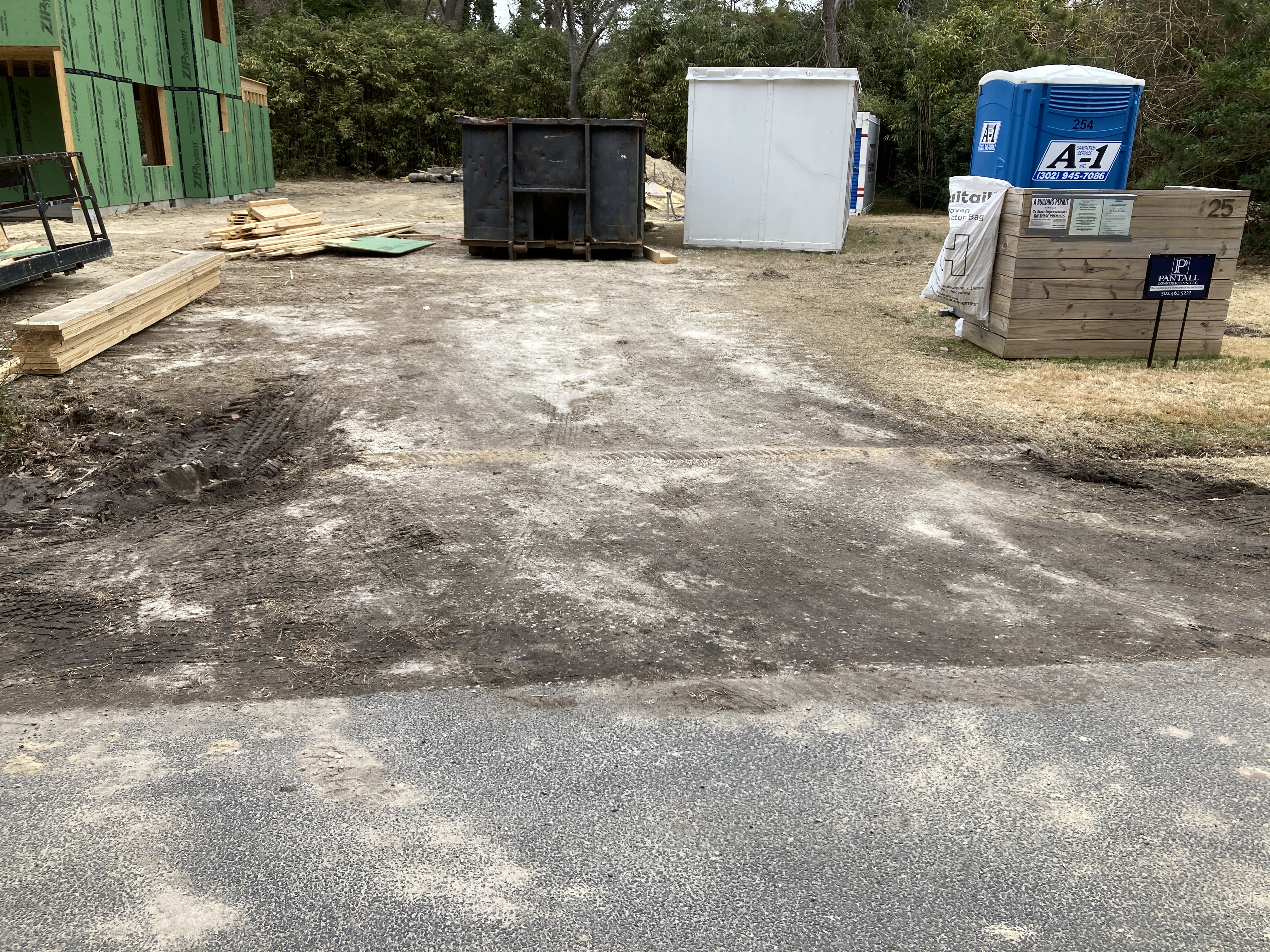

25-Ighemat
new house; driveway same location?
replace steel pipe w/ new 8"
|
 |
 |
 |
27-Sokolowski
reengineer swale
leave driveway culvert pipe in place if elevations work out
|
| Right (east) side of driveway |
Driveway |
Left (west) side of driveway |
Address/Owner/Misc Notes |
 |
 |
 |
2-Lyons
OK |
 |
 |
 |
4-Burgess/Mounteer
Collapsed steel culvert replaced January 2012
|
 |
 |
 |
6-Lewis
OK; swale re-engineering starts just east of this driveway |
 |
 |
 |
8W-Paul
Replace with new 10"; swale widened/deepened |
 |
 |
 |
8E-Paul
Replaced June 2024; swale work needed; 9 (mostly small) trees between swale and street to be removed |
 |
 |
 |
10-Chappell
Keep if elev OK |
 |
 |
 |

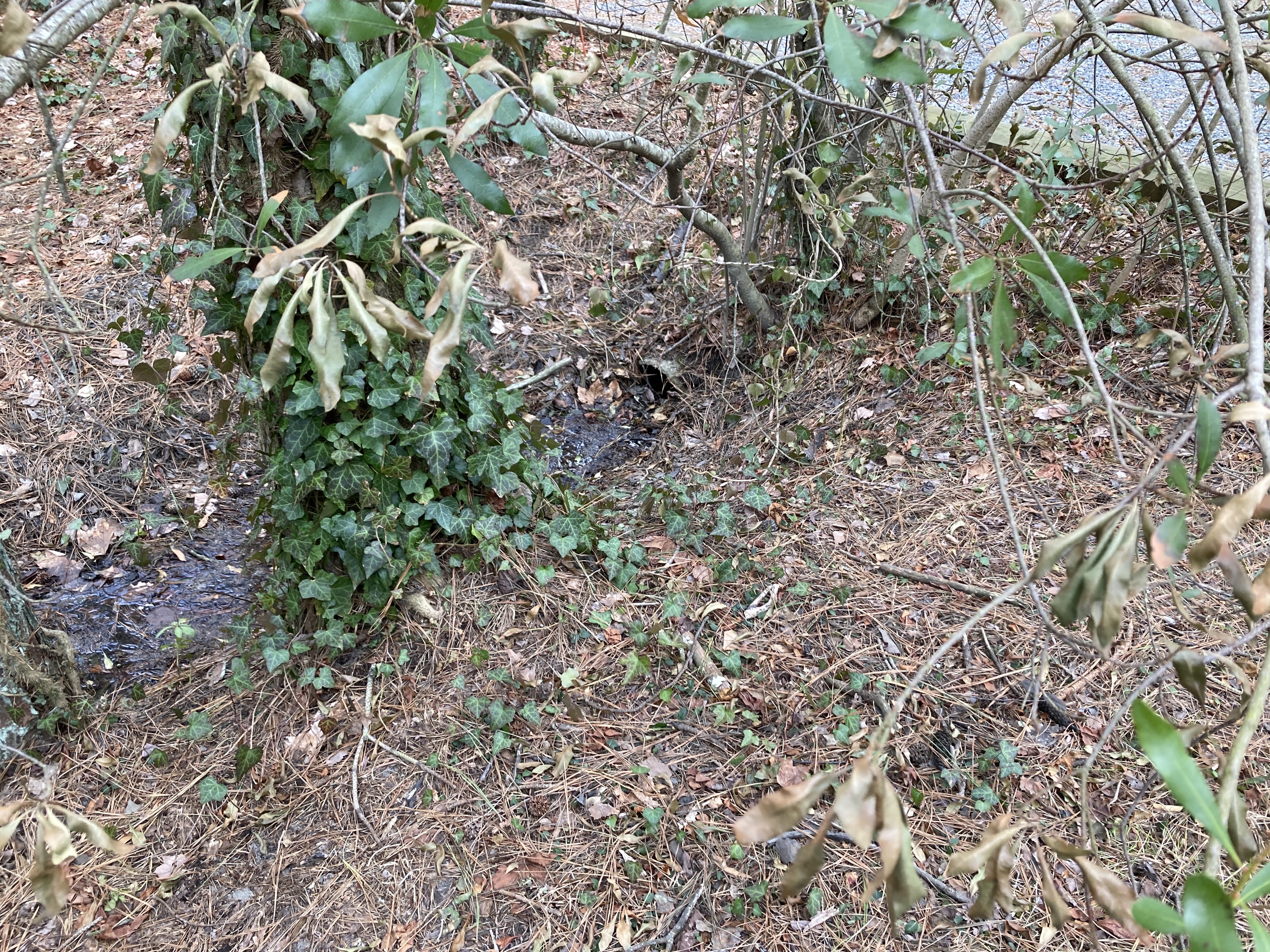

12-Mintz
Replace w/ new 10" pipe; 1 tree to be removed |
 |
 |
 |
14W-Throop/Parish
Replace concrete sections w/ new 10" pipe; 3 trees to be removed |
 |
 |
 |
14E-Throop/Parish
Replace stented steel pipe w/ new 10" pipe
|
 |
 |
 |
16W-Kaufman/Friedman
Replace w/ new 8" (try not to touch permeable pavers adjacent road)
remove trees growing on top of culvert |
 |
 |
 |
16E-Kaufman/Friedman
Replace w/ new 8" (try not to touch permeable pavers adjacent road)
|
 |
 |
 |
18-LePage
Keep if elevation works (pavers on top of concrete pipe sections; concrete walls adjacent driveway) |
 |
 |
 |
20W-Matthews
Replaced June 2024 |
 |
 |
 |
20E-Matthews
Replaced June 2024 |
 |
 |
 |
22-Neaton/Renwick
No work (hold off until work on adjacent Beach Plum has been evaluated) |
 |
 |
 |
22-Neaton/Renwick
No work (hold off until work on adjacent Beach Plum has been evaluated) |
 |
 |
 |
24-Murphy
No work (hold off until work on adjacent Beach Plum has been evaluated) |
